Laser Welder

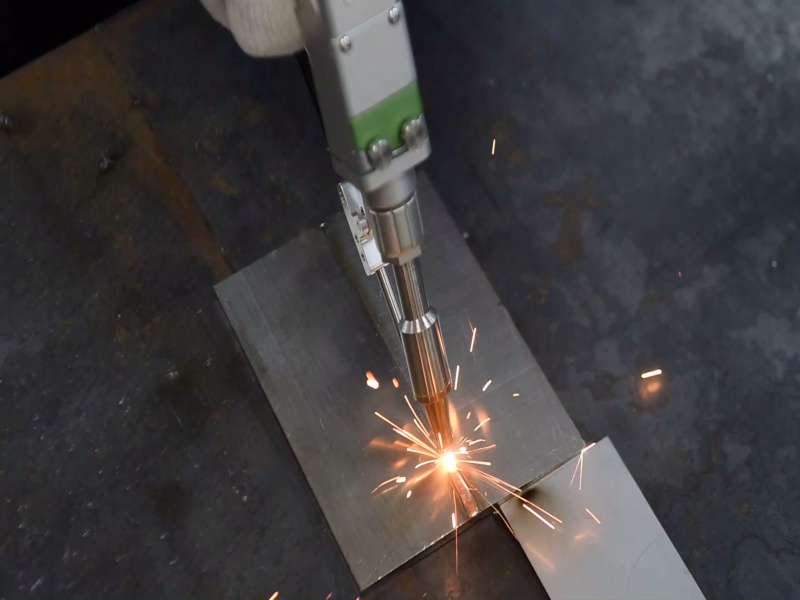

Handheld Laser Welder
1000W, 1500W, 2000W
3 in 1 Welding & Cutting & Derusting
|
Specification |
|||
|
LW1000 / LW1500 / LW2000 |
|||
|
1 Optical Spec |
|||
|
Output Power |
1000W |
1500W |
2000W |
|
Output Power Adjustment Range |
10 - 100% |
10 - 100% |
10 - 100% |
|
Laser Wavelength |
1080 ± 10 nm |
1080 ± 10 nm |
1080 ± 10 nm |
|
Power Consumption |
< 1% |
< 1% |
< 1% |
|
Power Stability |
20kHz |
20kHz |
20kHz |
|
Laser Response Time |
< 10us |
< 10us |
< 10us |
|
Indication Laser Power Range |
< 1mW |
< 1mW |
< 1mW |
|
2 Torch |
|||
|
Type |
Handheld Welding |
Handheld Welding |
Handheld Welding |
|
Collimating Focal Length |
50mm |
50mm |
50mm |
|
Focal Length |
150mm |
150mm |
150mm |
|
Fiber Length |
10m (or customermize) |
10m (or customermize) |
10m (or customermize) |
|
3 Working Condition |
|||
|
Cooling Method |
Water cooling |
Water cooling |
Water cooling |
|
Ambient Temperature |
10 - 40℃ |
10 - 40℃ |
10 - 40℃ |
|
Input Voltage |
220±10% Vac |
220±10% Vac |
220±10% Vac |
|
Power Consumption (Including Water Cooling) |
≤ 6 kW |
≤ 8 kW |
≤ 10 kW |
|
Humidity |
10 - 85% |
10 - 85% |
10 - 85% |
|
4 Mechanical Spec |
|||
|
Dimension (L×W×H) |
990 x 415 x 685 mm |
990 x 415 x 685 mm |
990 x 415 x 685 mm |
|
Weight（Gross） |
＜100kg |
＜100 kg |
＜120 kg |
