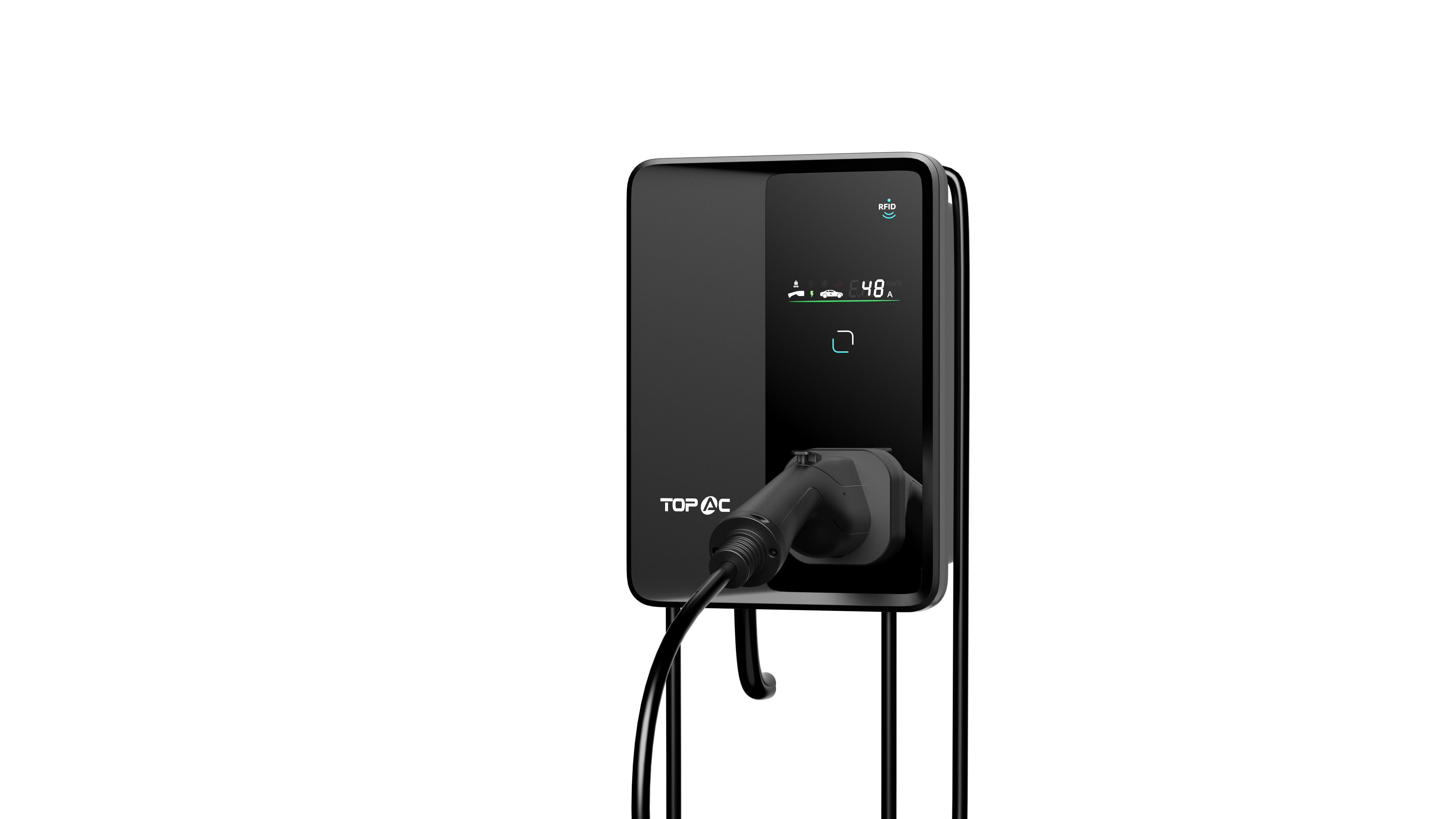

US standard type1 EV home Charging Wallbox 9.6kW-11.52kW
Features
Intelligent user interface
Smart charging control and connection
Comprehensive safety protection
Flexible Installation
Specification
|
Model |
EAD02-09RD |
EAD02-11RD |
|
Input |
208V/240V AC/40A/60Hz |
208V/240V AC/48A/60Hz |
|
Output |
208V/240V AC/40A/9.6kw |
208V/240V AC/48A/11.52kw |
|
Power Wiring |
Hardwired/NEMA14-50/6-50 |
Hardwired |
|
Certification |
FCC，ETL/UL |
|
|
Optional Communication |
Wi-Fi/Bluetooth, RS485/CAN, OCPP |
|
Charging hours for 100km(62miles)
9.6kw-1hrs 10min, 11kw-1hr
User Interface
Cable length:25FT
Cable specification:
9.6kw 3x0A WG+1x8A WG
11.52kw 2x8A WG+10A WG+1x16A WG
Enclosure material: Plastic PC
Start mode: Plug and Play/RFID card/APP for Optional
Safety
Application standard:UL2594,UL2231,UL62,UL991,UL1998SAEJ1772
Mechanical life: Plug in/Pull out>10000Times
Ingress protection：NEMA4
Electrical Protection: Over Current, Over/Under Voltage, Over Temperature, Surge, Short-Circuit, Leakage, Ground
Environment
Installation: Wall Mounted/Pole Mounted
Working Temperature:-22°F~122°F
Working Humidity：5%~95%
