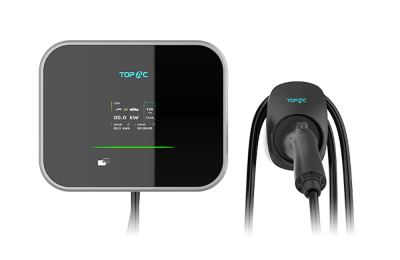

GB/T standard EV charging wallbox 7kW-11kW-21kW
Features
Intelligent user interface
Smart charging control and connection
Comprehensive safety protection
Flexible Installation
Specification
|
Model |
E0223032AT0D |
E0240016AT0D |
E0240032AT0D |
|
Rated Voltage |
220V |
220V |
220V |
|
Max Current |
32A |
16A |
32A |
|
Max Power |
7kW |
11kW |
21kW |
|
Power Wiring |
Hardwired |
Hardwired |
Hardwired |
|
Certification |
CQC |
CQC |
CQC |
|
Optional Communication |
Wi-Fi/Bluetooth, RS485/CAN, OCPP |
Wi-Fi/Bluetooth, RS485/CAN, OCPP |
|
User Interface
Cable length:5m/7.5m/10m
Cable specification:
7kw 3x6mm²+2x0.5mm²
11kw/21kw 5x2.5mm²+2x0.5mm²/5x8mm²+2x0.5mm²
Enclosure material: Plastic PC
Start mode: Plug and Play/RFID card/APP for Optional
Safety
Application standard:GB/T18478
Mechanical life: Plug in/Pull out>10000Times
Ingress protection: IP65
Electrical Protection: Over Current, Over/Under Voltage, Over Temperature, Surge, Short-Circuit, Leakage, Ground
Environment
Installation: Wall Mounted/Pole Mounted
Working Temperature:-25°C~45°C
Working Humidity：5%~95%
